RTK Device & System

RTK Device & System Summary

IoT solution that can calculate 3cm ~ 50cm high position accuracy by calculating GPS data and correction information which is provided by reference station in real time

Feature

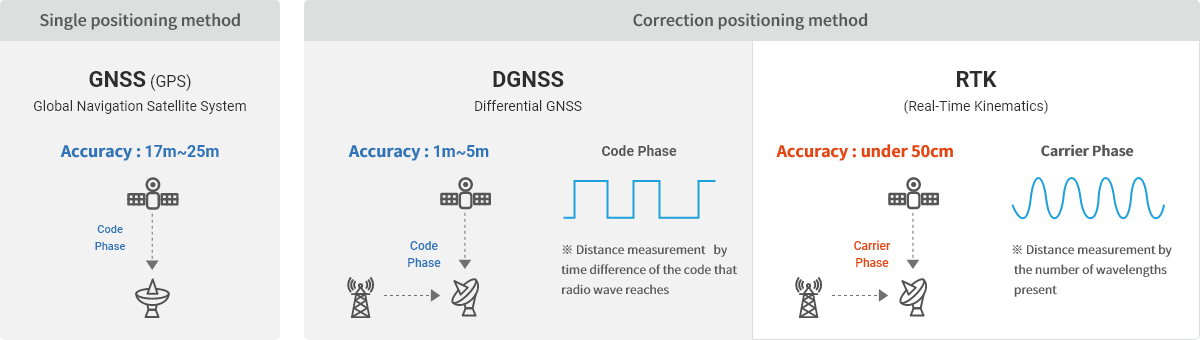

  • It has About 10 times higher accuracy than conventional GPS, and there is no shadow area by using LTE base station
  • We have a solution that minimizes the load on the system by utilizing an inexpensive commercial mobile network (LTE-Cat #1).
  • RTK device approximately 90% less expensive than other equipment
  • Depending on the service, Server-RTK solution or Device-RTK solution can be selected and applied.

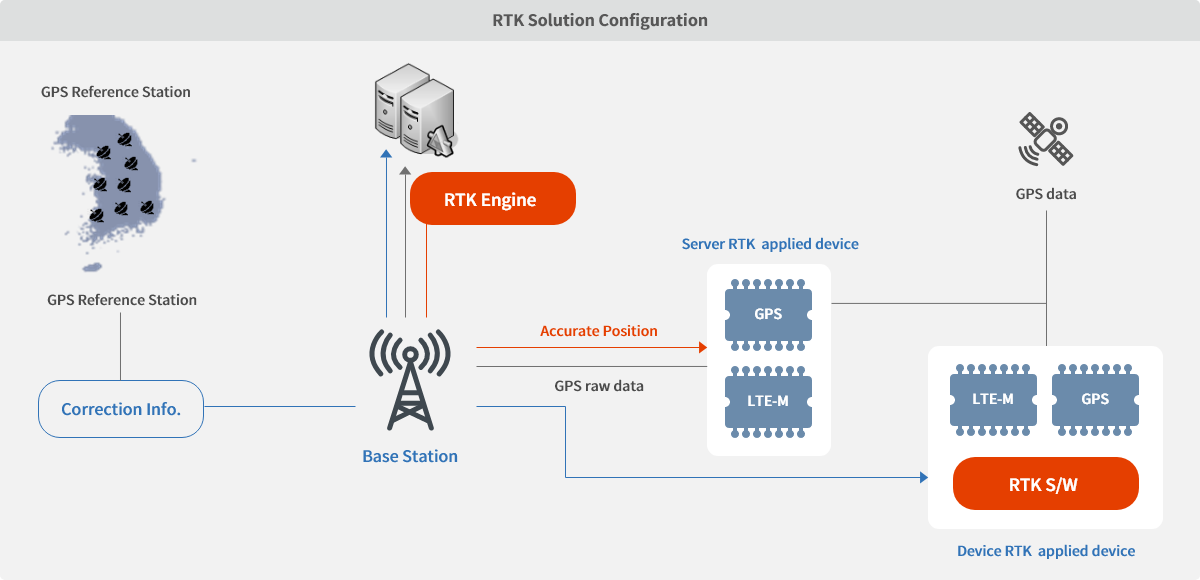

System Configuration

Accurate location tracking IoT solution from 3cm to 50cm by calculating GPS data and calibration data in real time

  • Purpose

    Outdoor Positioning

  • Error

    Under 50cm (TTA Certi.)

  • Size

    7cm x 7cm x 3cm

  • component

    Built in MCU, Ant and GPS chip, LTE-M communication, LED and Speaker, USB Port

  • Server RTK method

    Receive the reference station correction value and GPS raw data of the terminal from the server, and process the data with the RTK Engine to send precise coordinates to the terminal.
    → It can save power consumption.

  • Device RTK method

    Receive the reference station correction value and GPS raw data of satellite directly from the terminal, and process the data with RTK S/W installed in the terminal to calculate the precise coordinate
    → The processing time is fast.

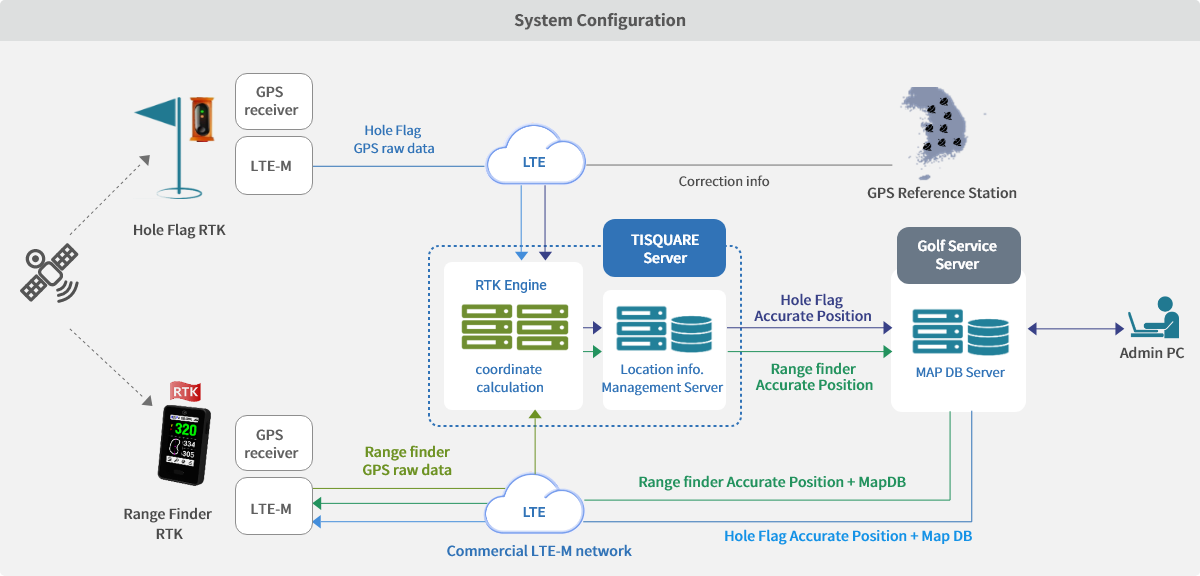

Application Service : High Precision Golf Rangefinder Service

Overcome the inaccuracies of existing rangefinders by providing accurate distance data of less than 1m

  • Accurate distance measurement to the hole and analysis of the putting distance in the green
  • Real-time precision location guides in real time, improving golf player's ease of use and skills
  • Smart golf service can be provided according to domestic introduction of no-caddie system and caddie selection policy

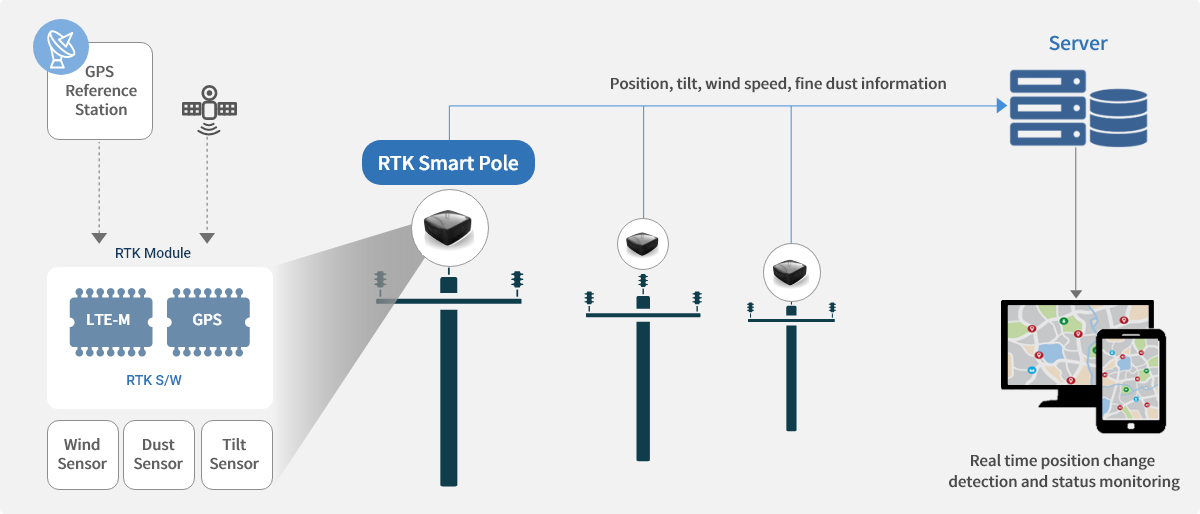

Application Service : Smart Power Pole Service

Real-time climate monitoring as well as accurate positioning of power poles

  • Alerts in real time when position changes are detected through tilt sensor and RTK precision positioning
  • Real-time check of climate information (temperature / humidity / air volume / fine dust)
  • Accurate positioning on the map with an accuracy of less than 10 cm

  • RTK Module

    • GPS data and correction information reception
    • Run RTK Engine
    • Send precise location information to server
    • Send climate Information to Server
    • Power supply from power pole
    • Waterproof, dustproof, durable

  • Server

    • Real time tilt change detection
    • Receive periodic precision location information
    • Pole Precision Location DB Construction
    • Automatic reporting alerts
    • Data reception cycle setting
    • Operation management (registration, control, correction, etc.)
